Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
  • Fiber Laser Tube Cutting Machine
Payment Type: L/C,T/T
Terms of Trade: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 20 working days Days
Packaging: wooden package
Productivity: 300set/month
Brand: XUANLIN
Transportation: Ocean,Land
Place of Origin: Jinan China
Supply Ability: 300
Certificate: CE, ISO, SGS
HS Code: 8456110090
Port: Qingdao Port
Basic Info

Model No.: XL60MA

Product Description

    Auto Focus Laser Cutting Head

  • Without Manual Focusing

    The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.
  • Bigger Adjustment Range

    Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
  • Long Service Life

    Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

fibre laser price

    Clamp Design

  • It adopts an pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

cnc laser machine


    Fractional Automatic Support Installation

  • It employs intelligent tube support design, which can solve the deformationproblems in the process of long tube cutting.
tube laser cutting machine

Technical Parameters

Machine model XL60MA
Laser power 1000W 2000W 3000W 4000W 6000W (Optional)
Dimensions 12694*5345*2638mm
Working area Hold diameter: Φ20mm-Φ300mm
Repeat positioning accuracy ±0.02mm
Maximum speed 1.5G
Max. acceleration ±0.02mm/m
Voltage and frequency 380V 50Hz/60HZ

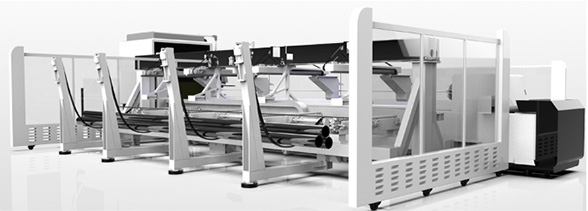

    Full-automatic Feeding and unloading material device

  • Automatic Feeding

    Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
  • Automatic Unloading

    The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.
fiber laser tube cutting machine

Machine Advantage

  • Wireless Controller

    It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.
LF60MA pipe laser cutting

Automatic Stroke Protection

Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk.

LF60MA fiber laser machine

Intelligent Alarm System

It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment.

LF60MA tube cutting

Industry Applications

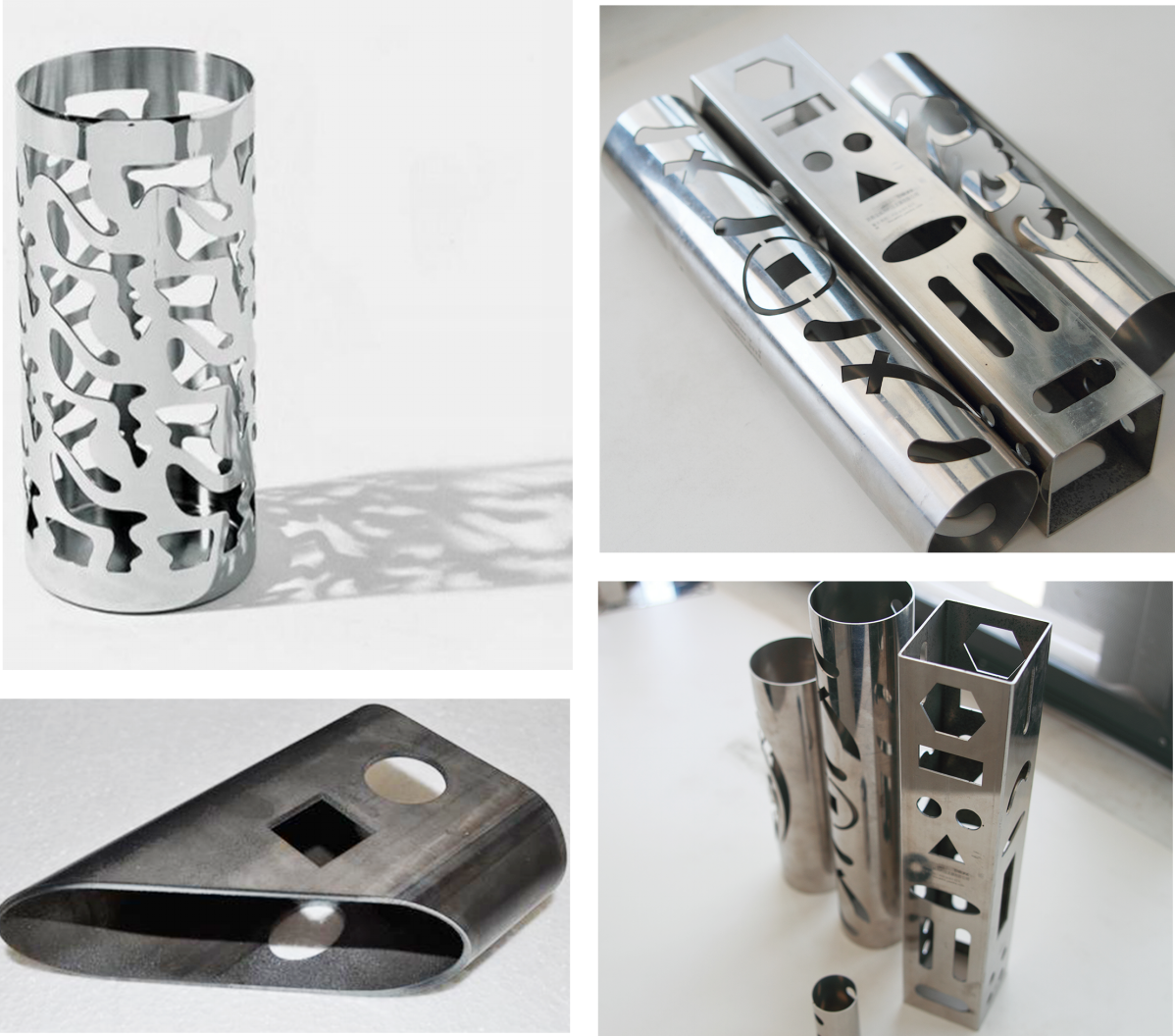

Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement. Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube □ 20 * 20- □150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.

fiber laser machine


cnc fiber laser
